Intent

Composite is a structural design pattern that lets you compose objects into tree structures and then work with these structures as if they were individual objects.

Simply its object made up of number of objects

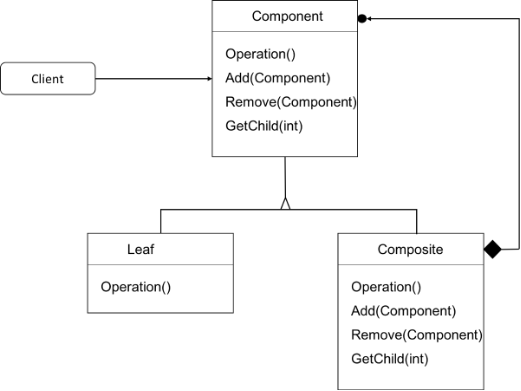

Let's see the 4 elements of composite pattern.

1) Component Declares interface for objects in composition. Implements default behavior for the interface common to all classes as appropriate. Declares an interface for accessing and managing its child components.

2) Leaf Represents leaf objects in composition. A leaf has no children. Defines behavior for primitive objects in the composition.

3) Composite Defines behavior for components having children. Stores child component. Implements child related operations in the component interface.

4) Client Manipulates objects in the composition through the component interface.

Example Here:

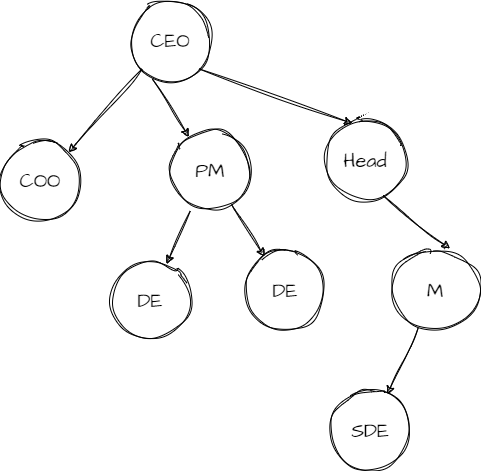

1. - Interface : Employee - Developer : Leaf - Manager | ProductOwner | CEO : Composite [ contains many nodes ] - Driver: Client

2. - Interface : Employee - Employer : Leaf and Composite - Driver: Client
